Wheel Shop WTB HTZ i30 / SRAM 900 Wheel Front 27.5 / 584 Holes: 32 15mm TA 110mm Disc IS 6-bolt

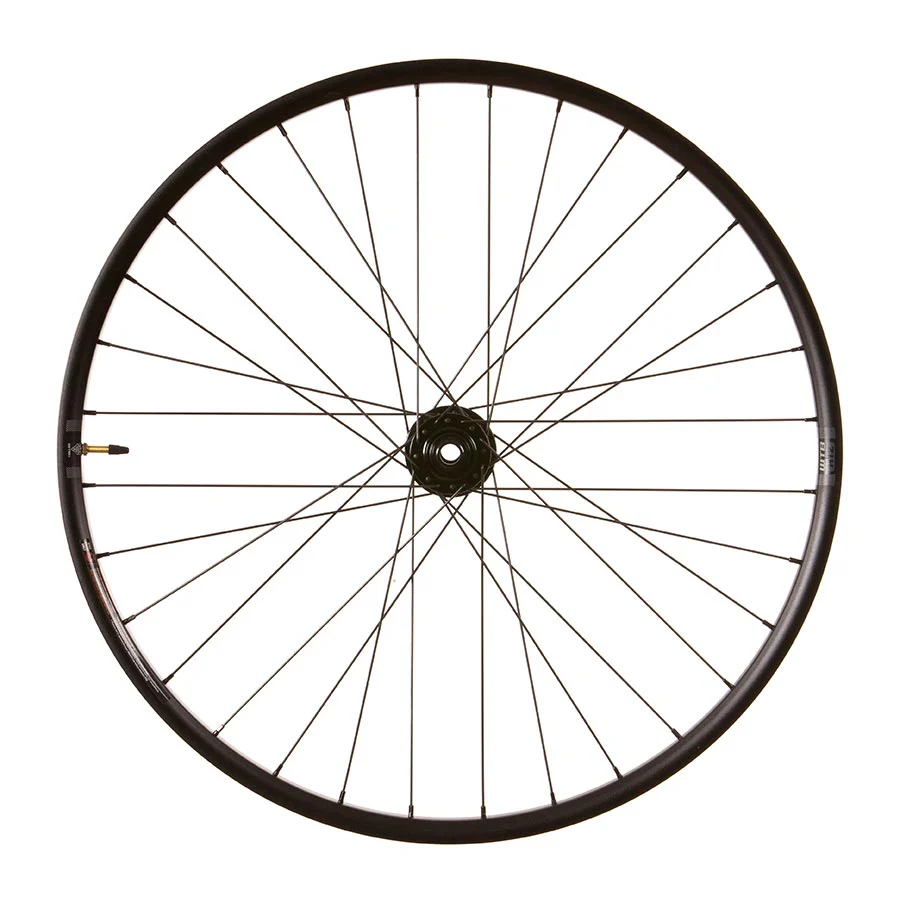

Product image 1

Wheel Shop WTB HTZ i30 / SRAM 900 Wheel Front 27.5 / 584 Holes: 32 15mm TA 110mm Disc IS 6-bolt

  • Rims: WTB HTZ i30 27.5"
  • ETRTO 584-30
  • Inner width: 30mm
  • 6061 series aluminum
  • Asymetric and angled spoke hole drilling distributes spoke tension more evenly
  • Reinforced I-Beam profile
  • Strong sleeved joint
  • Drilled for Presta valve
  • TCS 2.0 Tubeless System compatible
  • Solid Strip included
  • Tubeless valve included
  • 32 holes

  • Front hub: Sram 900 Boost
  • 15x110mm Thru-Axle (Axle not included)
  • 6 Bolt Disc Mount
  • Sealed cartridge bearings

  • Rear hub: Sram 900 XDR Boost
  • 12x148mm Thru-Axle (Axle not included)
  • 6 Bolt Disc Mount
  • Sealed cartridge bearings
  • Sram Double Time 4-Pawl Ratchet Freehub, 52 Points of Contact, 6.9 degree engagement angle
  • Compatible with 11,12 speed XD (1.85mm spacer included)

  • Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black), 14mm Brass Polyax Nipples (Black)
    • TECH SPECS
    Position Front
    Rim Construction Double wall Sleeved
    Skewers Included No
    Rim inner width range 28-34.9mm
    Rim Material Aluminum
    Rim Model WTB HTZ i30
    Rim Color Black
    Wheel Diameter/ISO 27.5 / 584
    Hub Spacing 110mm
    Rim Drilling 32
    Spoke Type Sapim Race
    Valve Presta
    Wheel-Brake Comp. Disc IS 6-bolt
    Wheel Tire Type Tubeless Compatible
    Axle Type 15mm TA
    Hub Model SRAM 900
    Rim Internal Width 30mm
    $249.99
    Wheel Shop WTB HTZ i30 / SRAM 900 Wheel Front 27.5 / 584 Holes: 32 15mm TA 110mm Disc IS 6-bolt—
    $249.99

    Product Information

    Shipping & Returns

    Description

  • Rims: WTB HTZ i30 27.5"
  • ETRTO 584-30
  • Inner width: 30mm
  • 6061 series aluminum
  • Asymetric and angled spoke hole drilling distributes spoke tension more evenly
  • Reinforced I-Beam profile
  • Strong sleeved joint
  • Drilled for Presta valve
  • TCS 2.0 Tubeless System compatible
  • Solid Strip included
  • Tubeless valve included
  • 32 holes

  • Front hub: Sram 900 Boost
  • 15x110mm Thru-Axle (Axle not included)
  • 6 Bolt Disc Mount
  • Sealed cartridge bearings

  • Rear hub: Sram 900 XDR Boost
  • 12x148mm Thru-Axle (Axle not included)
  • 6 Bolt Disc Mount
  • Sealed cartridge bearings
  • Sram Double Time 4-Pawl Ratchet Freehub, 52 Points of Contact, 6.9 degree engagement angle
  • Compatible with 11,12 speed XD (1.85mm spacer included)

  • Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black), 14mm Brass Polyax Nipples (Black)
    • TECH SPECS
    Position Front
    Rim Construction Double wall Sleeved
    Skewers Included No
    Rim inner width range 28-34.9mm
    Rim Material Aluminum
    Rim Model WTB HTZ i30
    Rim Color Black
    Wheel Diameter/ISO 27.5 / 584
    Hub Spacing 110mm
    Rim Drilling 32
    Spoke Type Sapim Race
    Valve Presta
    Wheel-Brake Comp. Disc IS 6-bolt
    Wheel Tire Type Tubeless Compatible
    Axle Type 15mm TA
    Hub Model SRAM 900
    Rim Internal Width 30mm
